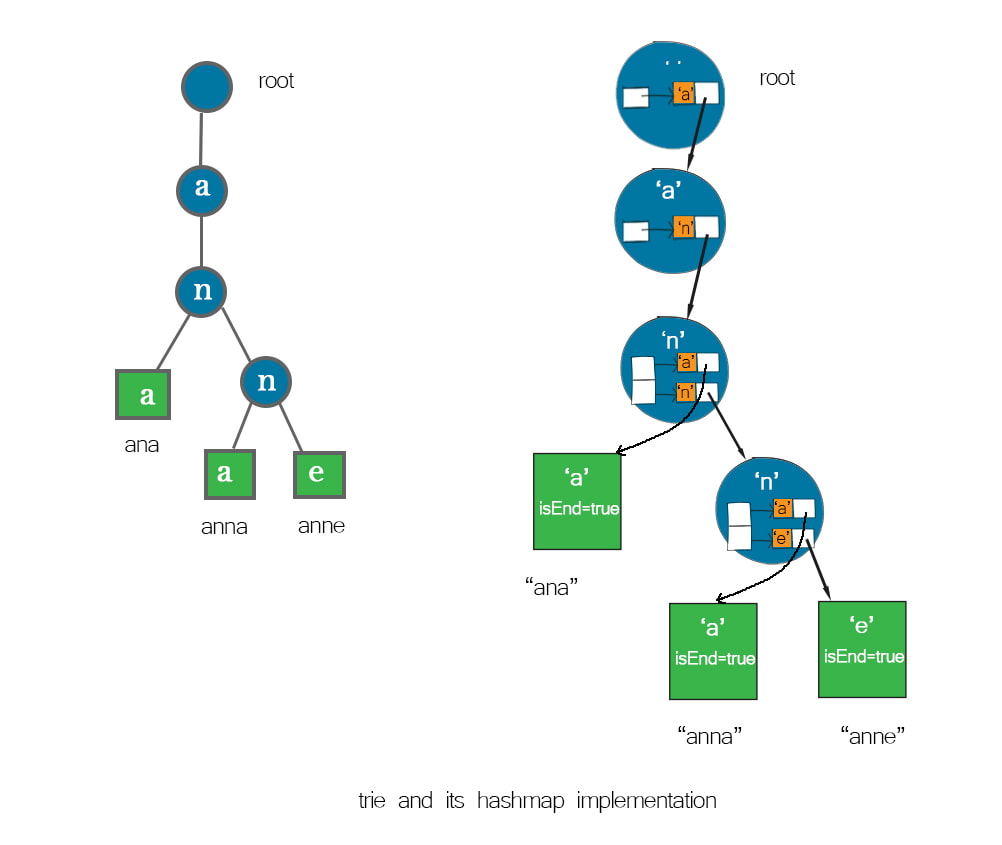

A trie is a tree-like data structure that can store multiple strings. A node in a trie stores a character. After building a trie, strings or substrings can be retrieved by traversing down a path (a branch) of the trie. Tries are used to find substrings, autocomplete, and many other string operations. Trie map is a trie that uses a hash map in the trie node that used to access child nodes.
Why is a hash map used in a trie node?
In a trie, each trie node might have multiple branches. So a trie node has a data structure to store the references to the next nodes in the branches. The data structure can be an array, a linked list, or a hash map. When the data structure is a hash map, the character is the key to finding the corresponding node in the branch. Using a hash map is better than an array since it minimizes unnecessary memory space.
Table of Content
- Map of trie implementations
- Define classes
- Insert a string
- Delete a string
- Search a string
- Print all strings in a trie
- Free download
Map of trie implementations
Part 1 – trie implementation using an array
Part 2 – trie implementation using a linked list
Part 3 – trie implementation using a hash map
Define classes in trie implementation
Like building a tree, you need to define a TrieNode class before a Trie class. A TrieNode class has three variables: data, children, and isEnd. data stores a character. children is a data structure that stores the references to child nodes (branches). Here the data structure is a hash map. isEnd is to mark whether this is the last node in the branch.
In the Trie class, there is a variable root. The operation of insertion, search, or deletion always starts from root. The data of the root can be any character, which is not associated with any strings. Its children hold references to the first characters in strings.
Java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 | import java.util.*; public class TrieMap { class TrieNode { char data; HashMap<Character, TrieNode> children = new HashMap<>(); boolean isEnd = false; //Constructor, Time O(1), Space O(1) TrieNode(char c) { this.data = c; } } TrieNode root = new TrieNode(' '); |
Javascript
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 | class TrieNode { //Constructor, Time O(1), Space O(1) constructor(c) { this.data = c; this.isEnd = false; this.children = new Map(); //map } } class Trie { //Constructor, Time O(1), Space O(1) constructor() { this.root = new TrieNode(''); } |
Python
1 2 3 4 5 6 7 8 9 10 11 12 | class TrieNode: #constructor, Time O(1) Space O(1) def __init__(self, c): self.data = c self.isEnd = False self.children = {} #map class Trie: #constructor, Time O(1) Space O(1) def __init__(self): self.root = TrieNode('') |
Insert a string in trie implementation
To insert a string, first check whether the string is in the trie so that you don’t insert a duplicate string. You start at root and loop through each character in the string. Create a new node “newNode” to store the character “ch”. Add the (ch, newNode) pair as an entry to the node’s children. Then move on to the next character and so on. When the node contains the last character of the string, you mark the node’s isEnd to be true.
Java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 | //Add a word to trie, Iteration, Time O(s), Space O(s), s is word length void insert(String word) { if (search(word) == true) { System.out.println(word + " is already in trie."); return; } TrieNode node = root; for (char ch : word.toCharArray()) { if (!node.children.containsKey(ch)) node.children.put(ch, new TrieNode(ch)); node = node.children.get(ch); } node.isEnd = true; } |
Javascript
1 2 3 4 5 6 7 8 9 10 11 12 13 14 | //inserts a word into the trie. Time O(s), Space O(s), s is word length insert (word) { if (this.search(word) == true) { System.out.println(word + " is already in trie."); return; } var node = this.root; for (let ch of word) { if (!node.children.has(ch)) node.children.set(ch, new TrieNode(ch)); node = node.children.get(ch); } node.isEnd = true; } |
Python
1 2 3 4 5 6 7 8 9 10 11 | #Add a word to trie, Time O(s) Space O(s), s is word length def insert(self, word): if self.search(word) == True: print(word + " is already in trie.") return node = self.root for ch in word: if not ch in node.children: node.children[ch] = TrieNode(ch) node = node.children[ch] node.isEnd = True |
Doodle
Delete a string
To delete a string from a trie, first check whether the string exists in the trie. If not, the method can return. Otherwise, you start at root and loop through each character in the string. If the character is in the node’s children’s key set, move on to the child node. When the node has the last character of the string, mark the node’s isEnd to be false. The string is still in the trie, but unsearchable.
Java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 | //Remove a word from trie, Iteration, Time O(s), Space O(1), s is word length void delete(String word) { if (this.search(word) == false) { System.out.println(word + " does not exist in trie."); return; } TrieNode node = root; for (char ch : word.toCharArray()) { if (!node.children.containsKey(ch)) return; node = node.children.get(ch); } node.isEnd = false; } |
Javascript
1 2 3 4 5 6 7 8 9 10 11 12 13 14 | //Remove a word from trie, Iteration, Time O(s), Space O(1), s is word length delete(word) { if (this.search(word) == null) { console.log(word + " does not exist in trie."); return; } let node = this.root; for (let ch of word) { if (!node.children.has(ch)) return; node = node.children.get(ch); } node.isEnd = false; } |
Python
1 2 3 4 5 6 7 8 9 10 11 | #Remove a word from trie, Iteration, Time O(s), Space O(1), s is word length def delete(self, word): if self.search(word) == False: print(word + " does not exist in trie.") return node = self.root for ch in word: if not ch in node.children: return node = node.children.get(ch) node.isEnd = False |
Search a string
To search for a string in a trie, start at root and loop through each character in the string. If the character is not in the node’s children’s key set, the method returns false. Otherwise, move on to the child node. When the node has the last character of the string, return the node’s isEnd value. If the value is false, it indicates the string has been deleted.
Java
1 2 3 4 5 6 7 8 9 10 | //Search a word in trie, Iteration, Time O(s), Space O(1), s is word length boolean search(String word) { TrieNode node = root; for (char ch : word.toCharArray()) { if (!node.children.containsKey(ch)) return false; node = node.children.get(ch); } return node.isEnd; } |
Javascript
1 2 3 4 5 6 7 8 9 10 | //Search a word in trie, Iteration, Time O(s), Space O(1), s is word length search(word) { let node = this.root; for(let ch of word) { if (!node.children.has(ch)) return false; node = node.children.get(ch); } return node.isEnd; } |
Python
1 2 3 4 5 6 7 8 | #Search a word in trie, Iteration, Time O(s), Space O(1), s is word length def search(self, word): node = self.root for ch in word: if not ch in node.children: return False node = node.children.get(ch) return node.isEnd |
Print all strings in a trie
To print all strings in a trie, recursion is used to traverse all nodes in the trie. This is similar to the preorder (depth-first search) traversal of a tree. When visiting the node, the method concatenates characters from previously visited nodes with the character of the current node. When the node’s isEnd is true, the recursion reaches the last character of the string. It indicates the completion of concatenating one string. You can go ahead to add the string to the result list.
Java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 | //Print all words in trie, call recursion function //Time O(n), Space O(n), n is number of nodes in trie void print() { List<String> res = new ArrayList<String>(); helper(root, res, ""); System.out.println(res); } //recursive function, Time O(n), Space O(n), n is number of nodes in trie void helper(TrieNode node, List<String> res, String prefix) { if (node.isEnd) { String word = prefix + node.data; res.add(word.substring(1)); //skip the first space from root } for (Character ch : node.children.keySet()) helper(node.children.get(ch), res, prefix + node.data); } |
Javascript
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 | //Print all words in trie, call recursion function //Time O(n), Space O(n), n is number of nodes in trie print() { let res = []; this.helper(this.root, res, ""); console.log(res); } //recursion function, Time O(n), Space O(n), n is number of nodes in trie helper (node, arr, perfix) { if (node.isEnd) arr.push(perfix + node.data); for (let c of node.children.keys()) this.helper(node.children.get(c), arr, perfix + node.data); } |
Python
1 2 3 4 5 6 7 8 9 10 11 12 13 | #Print all words in trie, call recursion function #Time O(n), Space O(n), n is number of nodes in trie def print(self): res = [] self.helper(self.root,res, "") print(res) #recursion function, Time O(n), Space O(n), n is number of nodes in trie def helper(self, node, res, prefix): if node.isEnd: res.append(prefix + node.data) for child in node.children.values(): self.helper(child, res, prefix + node.data) |
